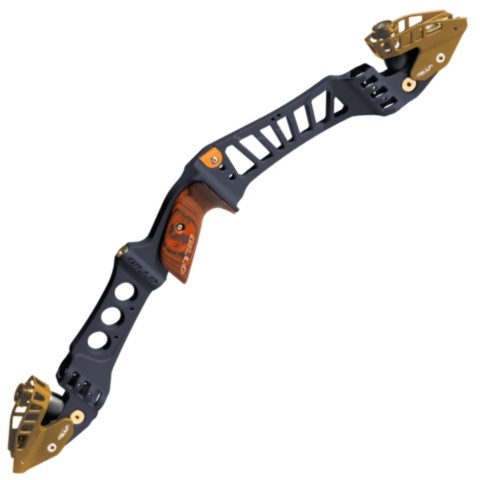

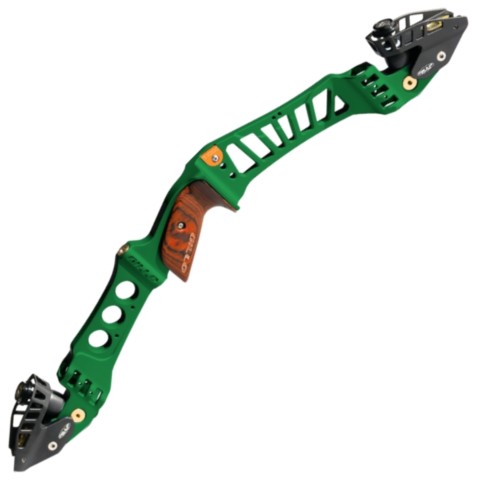

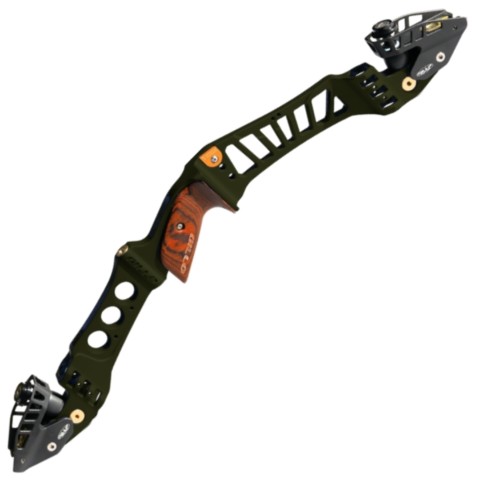

RISER GF 25 ILF

  • GILLO GF 25" - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery
  • GILLO GF - Gillo Archery

Specifiche Tecniche /  Technical Specifications

  • Recurve & Bare Bow riser
  • ILF Limbs compatible
  • Floating limbs pockets allow up to more than 40% poundage adjustment range
  • Integrated shock absorbers
  • 25.80” length, RH and LH versions
  • Body and Pockets machined from solid Aluminum bar
  • Matte sandblasted anodized surface
  • Aluminum 7075 Limbs alignment plates
  • “The Tunnels” perpendicular holes for round balancing plugs
  • Special round seats on lower part for optional balancing weights
  • Stainless steel limbs bolts assembled in AL 7075 black anodized bodies
  • Hard Wood, stratified G03-MG-M slim advanced grip
  • 1 front stabs bushings, 1 back stabs bushing, both made by Stainless Steel Gold color Titanium Nitride coated
  • 2 special Black anodized Aluminum plugs model G24-TP-01-BK , 5/16 24 tapped, to fit the Tunnels, are included as accessories.
  • Front center stabilizer bushing 1mm off from axis for perfect balance
  • Compatible to all G1, G2, GQ, G5 and GT Bare Bow weights, grips and accessories
  • Approx. 1440 gr mass weight

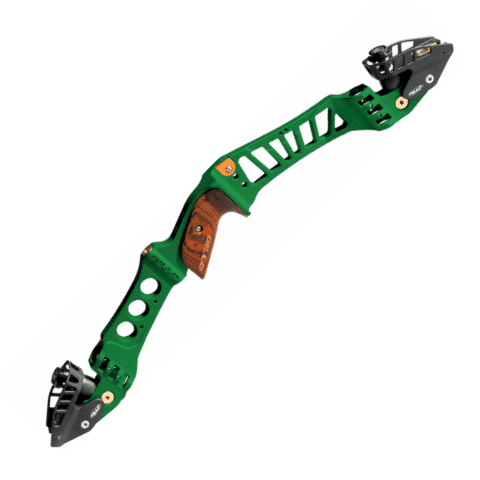

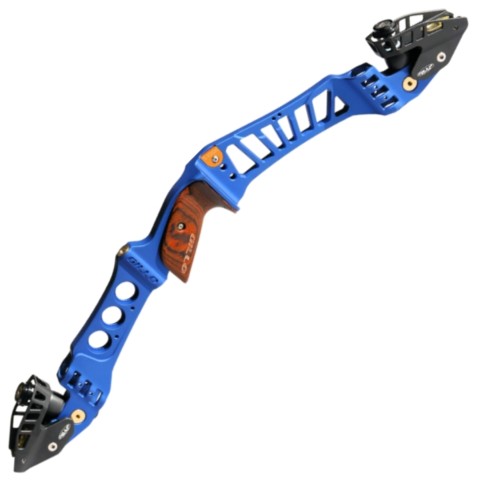

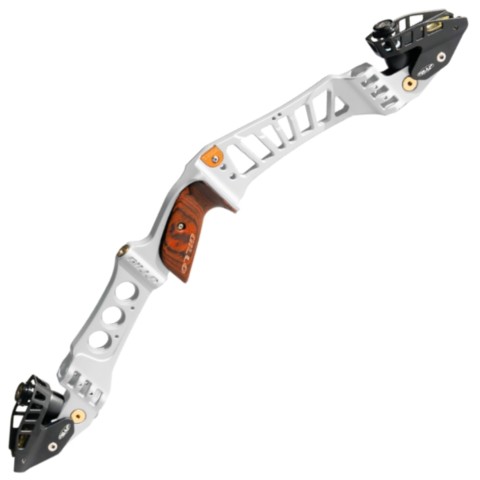

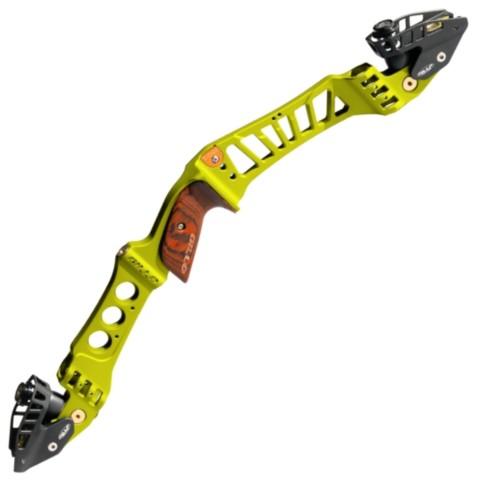

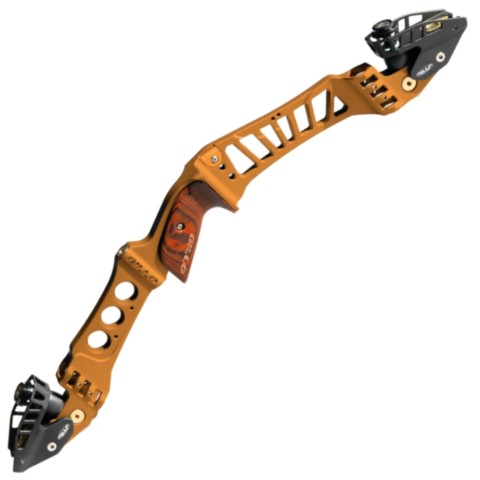

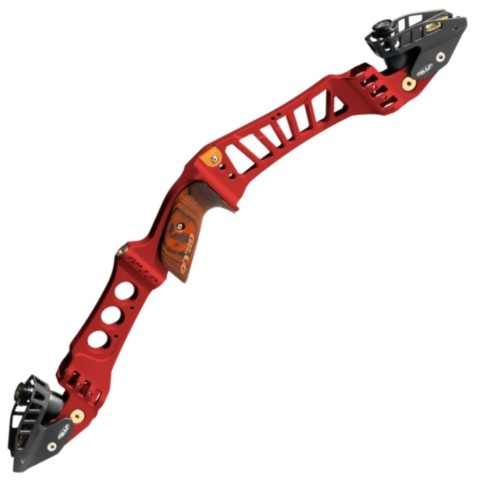

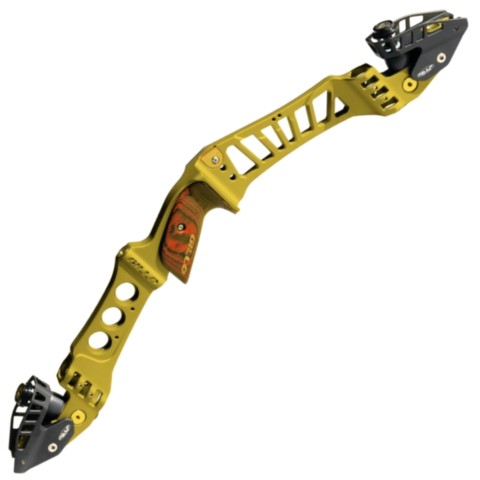

  • Dual Color versions RH: Blue (KBL), Grey (KGY), Pink (KPK), Purple (KPR), Green (KGR), Red (KRD), Yellow (KYL), Orange (KOG), Black (OBK)
  • Dual Color Cerakote Special Edition RH: Safety Orange (KSO), White (KWH), Dark Green (KDG)

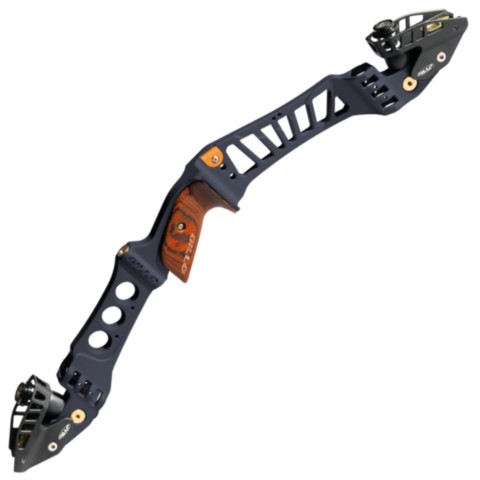

  • Total Color Black (KBK) version, RH and LH
  • Dual Color versions LH: Grey (KGY), Red (KRD), Blue (KBL), Green (KGR)
  • Packing includes also long clicker plate, Manual with Warranty card, GRS-03 riser protection sleeve, 4 Allen wrenches, 5 cliker and BB weights SS screw, 8 Transversal weights locking grub screws, 2 bolt locking Brass grub screws, 2 x G24-PP-01-BK Plastic plugs
